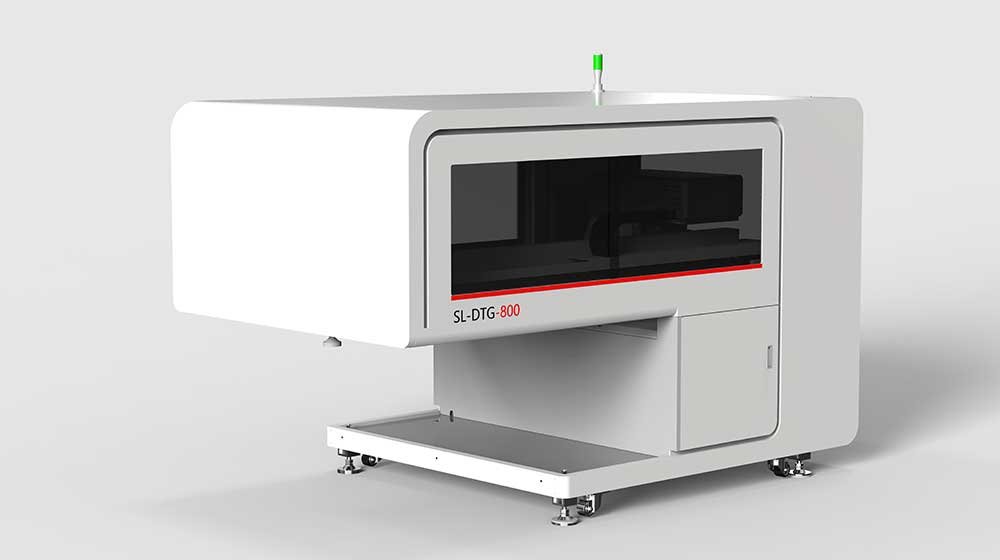

SL DTG-H800 Oval DTG Printer
The SL DTG-H800 Oval DTG Printer is designed for digital garment printing workflows that require flexible production, automated processing and scalable output.
Combining an oval production platform with digital printing technology, the DTG-H800 supports simultaneous white and color printing and eliminates separate manual pretreatment spraying from the production workflow.
From cut pieces and T-shirts to hoodies, sweaters and canvas bags, the DTG-H800 provides garment printing businesses with a flexible solution for customized apparel and print-on-demand production
Built for Industrial DTG Production
Traditional garment customization can involve multiple independent processes. The DTG-H800 is designed to bring digital printing and production management into a more integrated workflow.
Its oval production configuration enables multiple garment stations to operate within the same production system, making it suitable for businesses handling customized garments, short-run production and POD orders.
Dual Digital Printing
Supports simultaneous white and color output for efficient garment printing.
Integrated Processing Liquid
No separate manual pretreatment spraying process is required, helping simplify production and reduce additional labor.

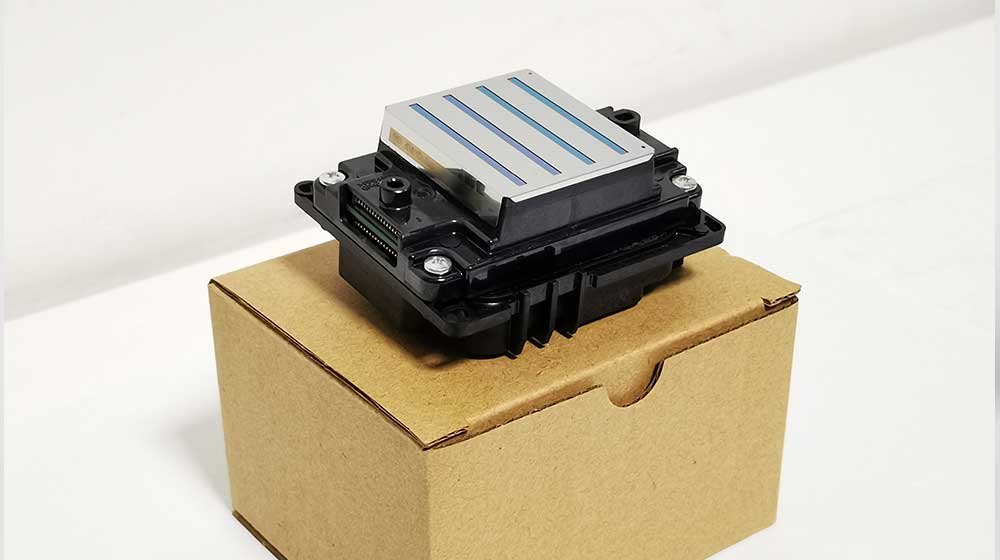

Flexible Printhead Configuration
The machine supports 4–8 Starfire printheads for white ink and 10–15 Ricoh printheads for color ink, according to the configuration shown in the product brochure.
POD Workflow Management
Supports single-piece printing together with full-process digital management, making the system suitable for customized and print-on-demand garment production.
A Smarter Workflow for Print-on-Demand Apparel
Digital Production from Order to Print
For POD businesses, printing speed is only one part of production efficiency. Different designs, garment types and order quantities also need to move through the production process efficiently.
The DTG-H800’s single-piece printing capability and full-process digital management are designed around this type of flexible production model.
Order → Artwork → Garment Loading → Processing → White & Color Printing → Finished Garment
From Single-Piece Customization to Scalable POD Production
One Machine for Flexible Garment Orders
Modern garment printing businesses increasingly need to handle different order quantities—from individual personalized products to larger production batches.
The DTG-H800 supports single-piece printing and full-process digital management, allowing production to be organized around individual designs and orders.
This makes the machine particularly relevant to workflows such as:
- Print-on-demand apparel
- Personalized T-shirt printing
- Custom hoodie production
- Fashion garment customization
- Online apparel orders
- Small-batch garment production
- Multi-design production
Technical Specifications
| Item | Specification |
|---|---|
| Print Head | Starfire & Ricoh, 8–15 Print Heads (Optional) |
| Maximum Printing Resolution | 635 × 1800 dpi |
| Maximum Print Size | 500 × 600 mm |
| Print Color | Supports multiple color sequence combinations |
| Print Height | 3 mm / Ultra Height Max. 30 mm |
| Print Media | Flat fiber fabrics including cotton, linen, silk, canvas, denim and blends |
| RIP Software | SL-RIP |
| Connection Method | USB Port |
| Ink Type | Environmentally Friendly Water-Based Coating Inks |
| Power Supply | AC220/110V, 50Hz–60Hz, 3000W |
| Machine Size | 2950 × 1607 × 1885 mm |
| Wooden Package Size | 3030 × 1830 × 1960 mm, excluding frame |
| Net Weight | 1550 kg, excluding frame |
| Gross Weight | 1650 kg, excluding frame |
| Operating Environment | Clean, ventilated environment; temperature and humidity requirements apply |
Specifications above are organized from the supplied DTG-H800 product brochure. Configuration may vary depending on the selected machine setup
| Print Size | Color Printing | White Printing |
|---|---|---|
| A4 | 360 pcs/h | 300 pcs/h |
| A3 | 200 pcs/h | 163 pcs/h |
Printing Precision: 6PASS / 635 × 1800 DPI
Printing Method: Color + White Frequency Division
About Us
With years of manufacturing experience, we have the most complete T-shirt
Printing Machine production supply chain in the world, providing our customers
with cost-effective products with complete manufacturing equipment,
manufacturing management, and automated production solutions
Upgrade Your Garment Printing Workflow
Whether you’re expanding a customized apparel business or developing a scalable print-on-demand garment production line, the SL DTG-H800 Oval Digital Printer provides an integrated platform for digital garment printing.
Tell us about your garment type, expected daily output, print size and production requirements, and our team can help you determine the appropriate DTG-H800 configuration.
