SL DTG-H600 Oval DTG Printer
The SL DTG-H600 Oval Digital Printer is designed for flexible industrial garment production, combining digital direct-to-garment printing with inline pretreatment and POD-oriented digital production management.
Built for manufacturers handling cut pieces, T-shirts, hoodies, sweaters, canvas bags and other textile products, the DTG-H600 helps streamline the printing process while supporting both customized orders and scalable production.
Built for Industrial DTG Production
The DTG-H600 brings printing, pretreatment and digital workflow management together in an oval production platform.
Instead of relying on a conventional manual pretreatment spraying process, the integrated system helps reduce separate handling steps while supporting efficient white-ink and color printing.
Breathable & Flexible Printing
Designed for textile applications where print flexibility and production efficiency matter.

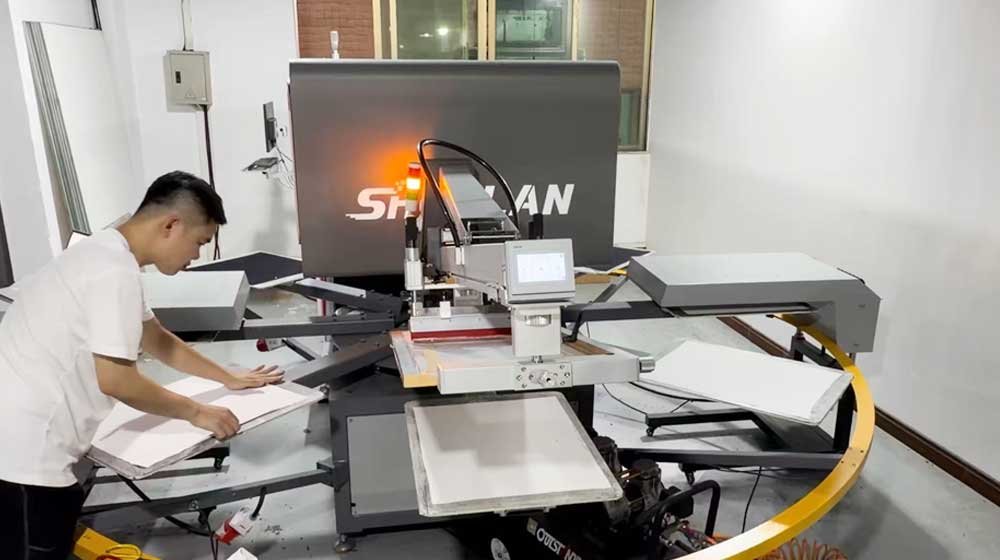

Built for Industrial Mass Production
An oval production configuration supports continuous garment manufacturing workflows.

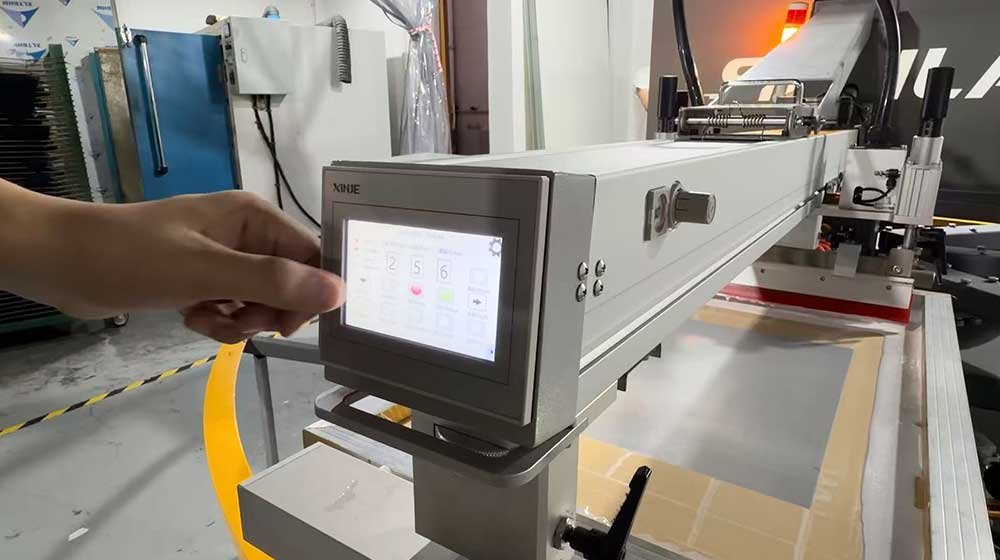

Integrated Inline Pretreatment
No manual pretreatment spraying is required, helping reduce labor requirements and simplify the production process.

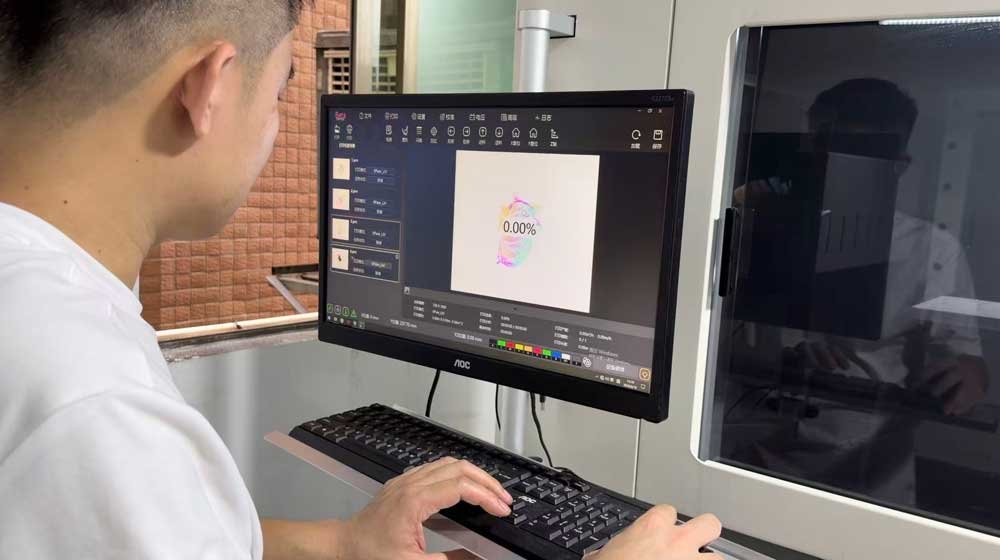

POD Digital Management
Supports POD smart single-piece printing and full-process digital management for customized production.
Oval Production Platform
Designed for Continuous Garment Printing
Unlike a conventional standalone DTG printer, the DTG-H600 uses an oval production configuration designed for industrial garment manufacturing.
Its production-oriented architecture makes it suitable for businesses processing larger quantities of garments while maintaining the flexibility required for digital printing.
The system can support different production requirements—from customized single-piece orders to larger garment printing runs.
Inline Pretreatment for a More Efficient Workflow
Reduce Manual Steps Before Printing
Pretreatment is an important part of DTG production, particularly when printing white ink on dark garments.
The DTG-H600 integrates pretreatment into the production system, eliminating the need for a separate manual pretreatment spraying process.
This integrated approach is designed to help manufacturers:
- Reduce manual pretreatment operations
- Save production labor
- Simplify garment handling
- Improve workflow consistency
- Support more efficient order processing
From pretreatment to digital printing, DTG-H600 is designed around a more connected garment production workflow.
Technical Specifications
| Specification | DTG-H600 |
|---|---|
| Product | SL DTG-H600 Oval Digital Printer |
| Printhead | EPSON I3200 / I3200HD |
| Printheads | 4–6 Print Heads Optional |
| Maximum Printing Resolution | 720 × 1800 dpi |
| Maximum Print Size | 500 × 600 mm |
| Print Color | Supports multiple color sequence combinations |
| Print Height | 30 mm; lifting height max. 80 mm |
| Print Media | Plant fiber fabrics such as cotton, linen, silk, canvas, denim and blends |
| RIP Software | RIIN |
| Machine Size | 2610 × 1430 × 1817 mm, including 8-station oval frame: 4493 × 3360 × 1817 mm |
| Net Weight | 260 kg, including 8-station oval frame: 600 kg |
| Power Supply | AC220/110V, 50Hz–60Hz, ≥1200W (dryer power not included) |
| Connection | Gigabit Ethernet Port |
| Ink Type | Environmentally friendly water-based coating inks |
| Environment | Clean, ventilated environment; temperature 20–28°C; humidity <65% |
| Printing Precision | Printing Method | A4 Production Efficiency | A3 Production Efficiency |
|---|---|---|---|
| 6PASS / 720 × 1800 DPI | Color + White Simultaneous | 90 pcs/h | 70 pcs/h |
About Us
With years of manufacturing experience, we have the most complete T-shirt
Printing Machine production supply chain in the world, providing our customers
with cost-effective products with complete manufacturing equipment,
manufacturing management, and automated production solutions
Build a More Flexible Digital Garment Production Line
Whether you’re expanding a garment printing facility, introducing print-on-demand production or looking for a more integrated DTG workflow, the SL DTG-H600 Oval Digital Printer provides a production platform designed around flexibility and industrial efficiency.
Talk to our team about your garment type, daily production requirements and printing workflow.
