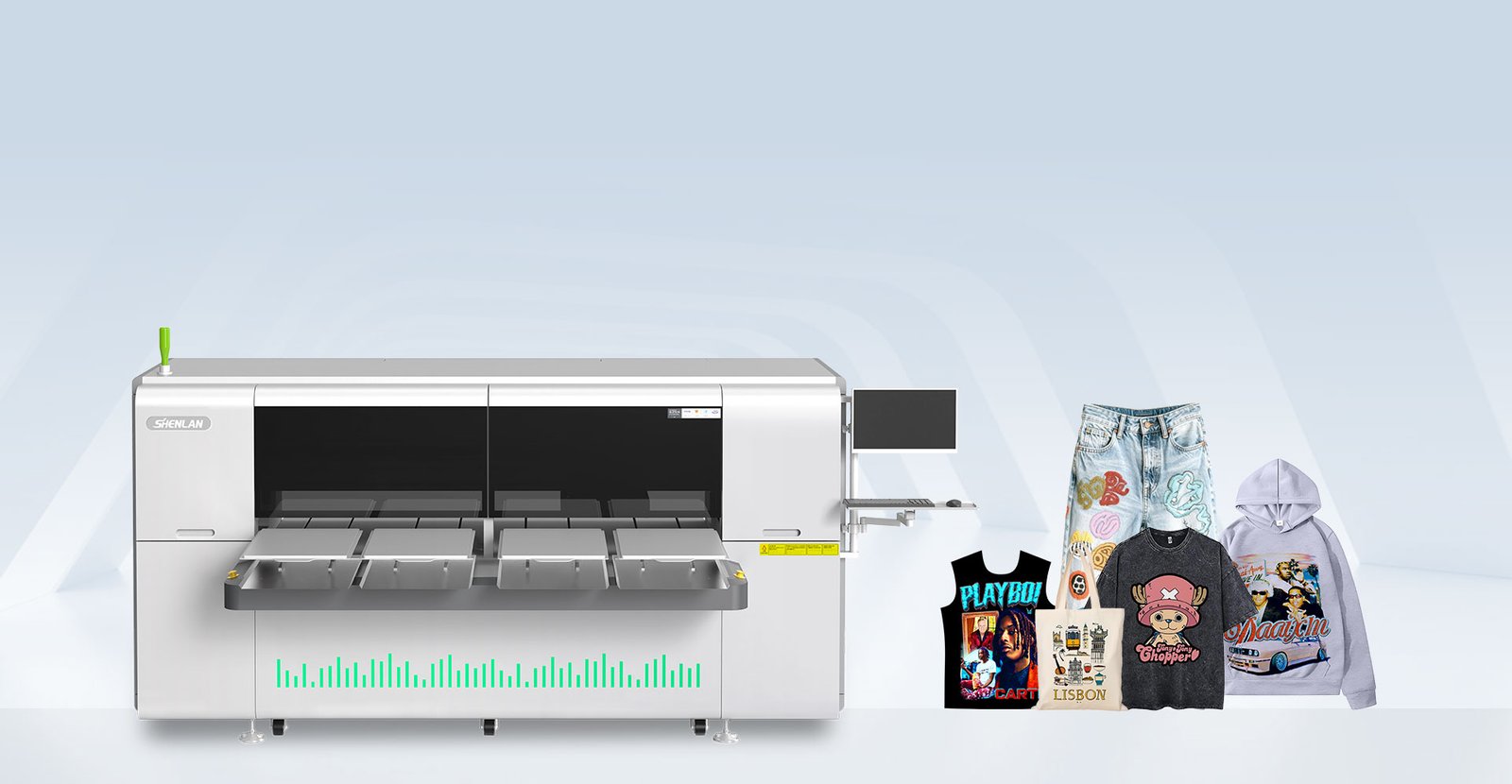

SL DTG-X4 Multi-Platen DTG Printer
Built for high-volume garment production, the SHENLAN SL DTG-X4 delivers the productivity and flexibility modern apparel businesses need.
With a multi-platen configuration of up to 8 workstations and up to 16 printheads, X4 enables continuous production across T-shirts, hoodies, denim, cut pieces, and other fabric applications.
From on-demand customization to large production runs, X4 helps you print more, respond faster, and scale your business with confidence.
| ITEM | TECHNICAL CONFIGURATION |
|---|---|
| Print Head | Epson i3200 / i3200HD |
| Print Heads | 8–16 Print Heads |
| Printing Resolution | Max. 540 × 2400 dpi |
| Print Size | 400 × 500 mm × 4 / Max. 1000 × 650 mm × 2 |
| Print Color | CMYK + White |
| Print Height | 3 mm / Lifting Height: Max. 30 mm |
| Workstations | 4–8 Workstations |
| RIP Software | Caldera RIP / SL-RIP |
| Machine Size | 3450 × 1800 × 1810 mm |
| Package Size | 3530 × 1900 × 2045 mm |
| Net / Gross Weight | 720 kg / 990 kg |
| Power Supply | AC 220/110V, 50–60Hz, 2000W |
| Connection | USB Port |
| Ink Type | Environmentally Friendly Water-Based Coating Inks |
| Operating Environment | Clean, ventilated workshop; 20–28°C; Humidity ≤65% |
| ITEM | TECHNICAL CONFIGURATION |
|---|---|
| Printing Method | Color + White Simultaneous |
| Printing Precision | 4PASS / 540 × 1200 dpi |
| A4 Production Efficiency | Up to 171 pcs/h |
| A3 Production Efficiency | Up to 135 pcs/h |
| Print Media | Cotton, Linen, Silk, Canvas, Denim, Blended Fabrics, etc. |
| Applications | T-Shirts, Hoodies, Denim, Cut Pieces, Canvas Bags |
| Production Type | On-Demand Printing / POD / Industrial Production |
Product Features
The SL DTG-X4 combines multi-platen printing, industrial printhead technology, and streamlined production management to help apparel businesses increase productivity and handle larger orders with confidence.

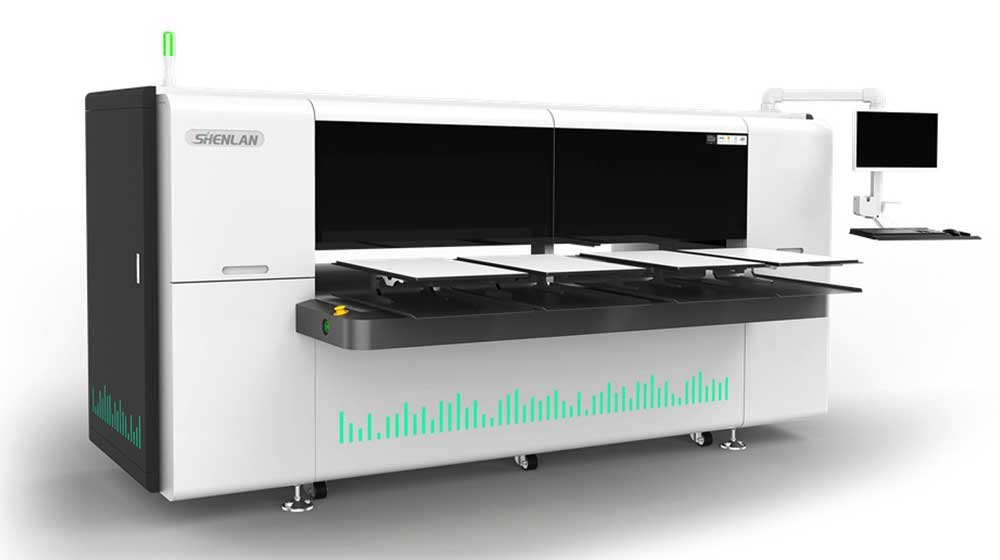

Multi-Platen Printing
4–8 Workstations for Higher Productivity，Multiple independent workstations allow operators to load and unload garments while printing continues, helping maximize machine utilization and production efficiency.
Up to 16 Industrial Printheads
Built for High-Volume Production，Equipped with 8–16 Epson i3200 / i3200HD printheads, the X4 is designed for demanding production environments where consistent output and productivity matter.
Color + White Simultaneous Printing
Efficient Full-Color Garment Printing，Color and white ink can be printed simultaneously, helping streamline the production process while delivering vibrant, high-detail garment graphics.
Quick Plate Change
Fast Switching Between Production Jobs，The quick-change platen system makes it easier to switch between different garment sizes and production requirements, improving workflow flexibility.
THK Silent Guide Rails
Smooth & Stable Movement，High-quality THK silent guide rails provide smooth machine movement and support stable operation during continuous printing.
Anti-Collision Protection
Added Protection for the Printheads，The integrated anti-collision protection system helps reduce the risk of printhead damage caused by unexpected contact during operation.
Caldera RIP Integration
Professional Workflow Management，Integrated with Caldera RIP / SL-RIP, the X4 supports professional image processing and production workflow management for high-detail printing.
Designed for POD & Industrial Production
From Single Pieces to Large Orders，The X4 supports both on-demand customization and high-volume apparel production, making it suitable for T-shirts, hoodies, denim, cut pieces, and canvas bags.
